P5 LED Display Panel Module 320X160mm Size Outdoor LED Screen P2 P2.5 P3 P4 P6 P7.62 P8 P10 Panel LEDsandLighting Free Shipping

  • Ships From:

  • Support Language:


Buy With Confidence

100% Safe Payment


  • Description

    Outdoor P5 LED display module 320X160mm


    1. Module Size: 320mm x 160mm.

    2. Module Pixel Pitch: 5mm.

    3. Module Resolution: 64dotsX32dots.

    4. Pixel Density: 40000dots/sqm.

    5. Color Configuration: 1R1G1B 3 in 1.

    6. LED Package: SMD2727.

    7. Drive Mode: 1/8Scan Constant Current.

    8. Standard Cabinet Size: 640mm X 640mm.

    9. Cabinet Weight: 12KG.

    10. Brightness:3000-7000cd/sqm(adjustable).

    11. Best Viewing Distance: 4m-100m.

    12. Drive IC: 2037 or same level.

    13. Refresh Rate: 1920HZ.

    14. Frame Rate: 120frame/sec.

    15. Grey Scale: 16.7M colors.

    16. Interface: HUB75E.

    17. Viewing Angle: H: 160°; V:160°.

    18. Color Temperature: 256 level(adjustable).

    19. Power Input: DC5V.

    20. Ave Power Consumption: 300W/sqm.

    21. Storage Temperature: -30~+70 degree.

    22. Working Temperature: -20~+50 degree.

    23. IP grade: IP65(waterproof).

    24. Operating Humidity: 10%~95%.

    25. Blind Spot Rate: <1/10000.

    26. Life Span: >100,000 Hours.

    27. Warranty: 3 Years.

    28. Control Method: Synchronous, Asynchronous, 3G,4G,WIFI,USB.

    29. Video Signal Mode: RF, S-Video, RGB, RGBHV, YUV, YC etc.

    30. Certificate: CE, FCC, PSE, RoHS.

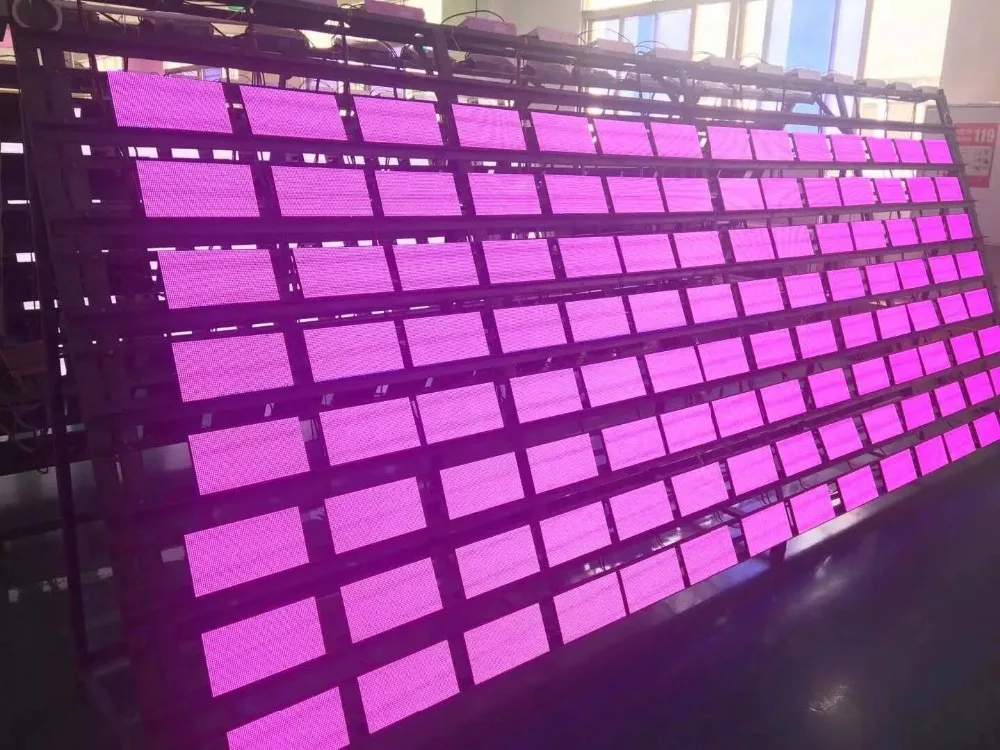

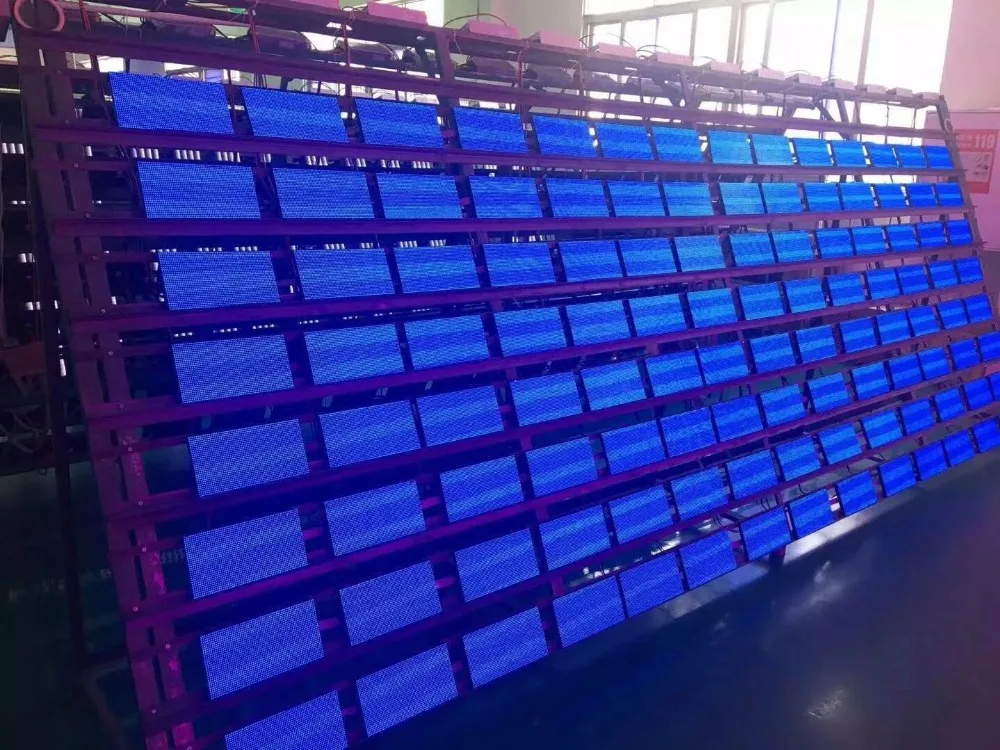

    Product display:

    LED display distinguish between indoor and outdoor

    Outdoor LED display:With waterproof rubber ring,PCB board sealing,waterproof,High brightness.

    Indoor LED display:No waterproof rubber ring,PCB board exposed,Not waterproof,cheap price.

    if you need Indoor LED display, please click the picture below to buy, or contact us

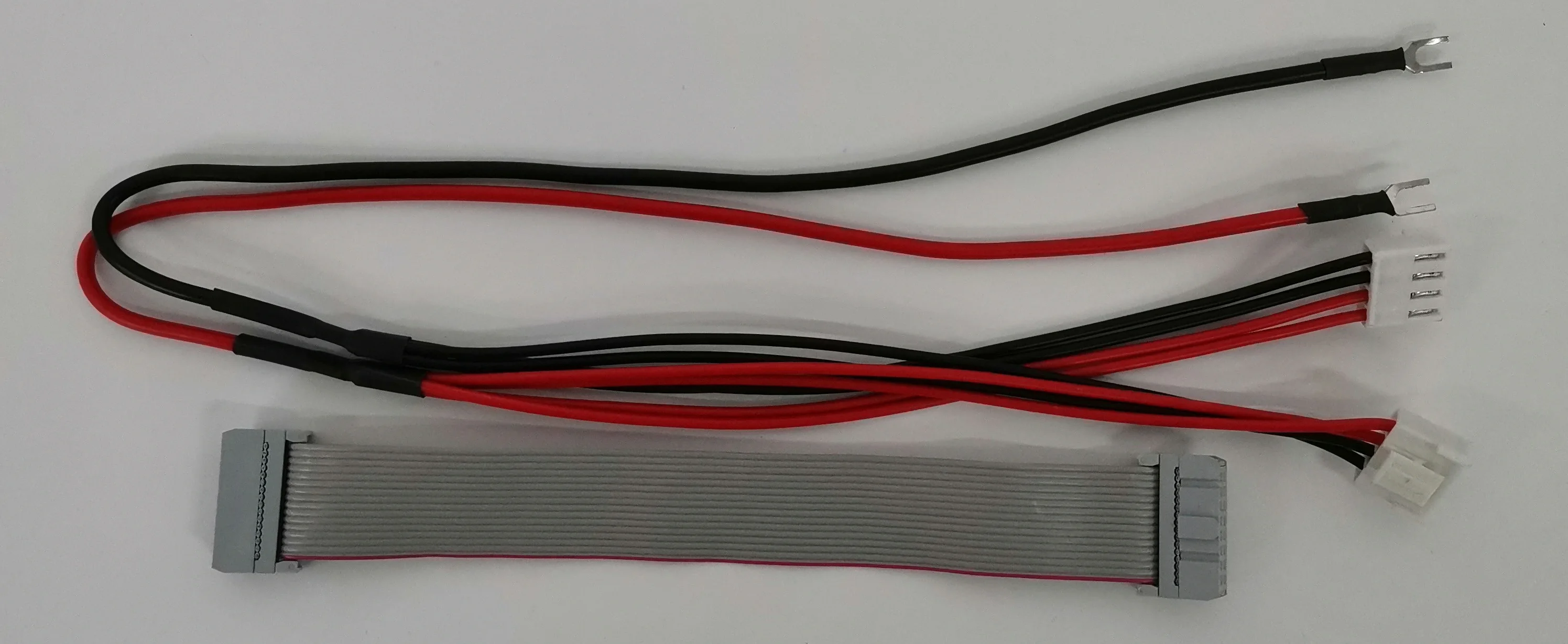

    Packing list for purchasing N LED modules:

    1.N LED modules

    2.N data lines

    3.N / 2 power cords (because 1 power cord can support 2 LED modules.)

    P5 LED module can be made into 640X640mm,960X960mm standard die-cast aluminum cabinet, Or customize aluminum cabinet or iron cabinet of other sizes according to your needs

    640X640mm standard die-cast aluminum cabinet

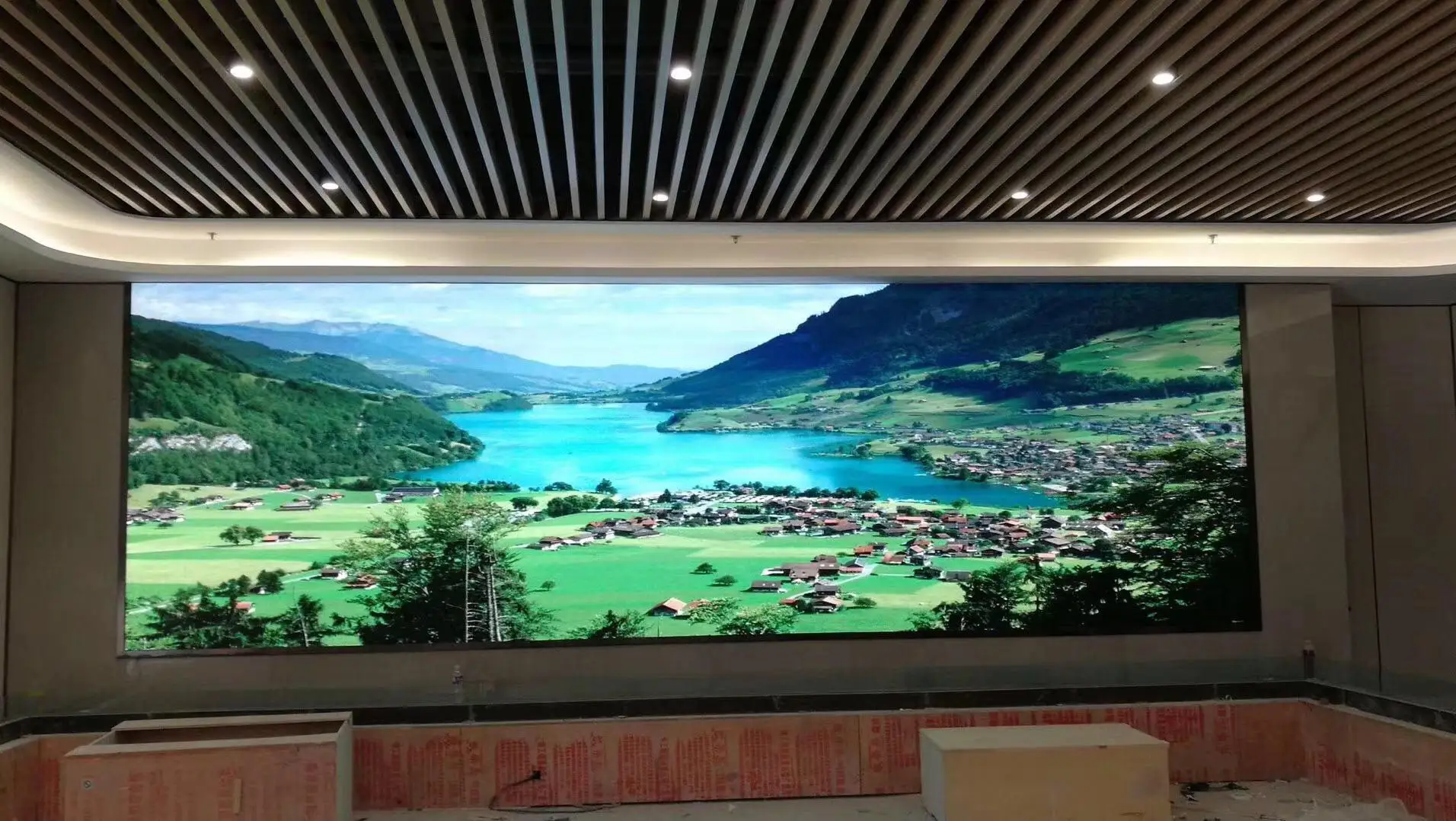

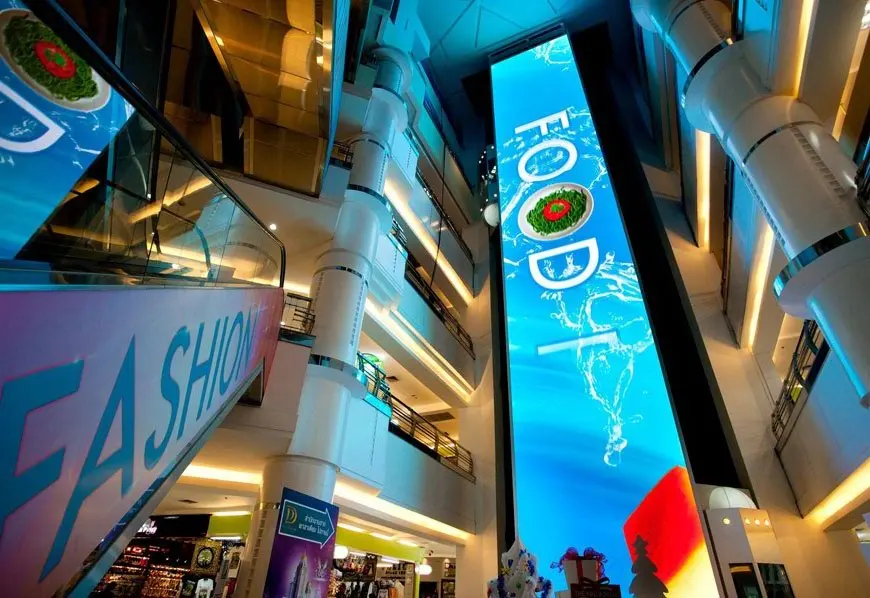

    Effect display:

    Products Recommended:

    We have different types of LED modules and LED displays for indoor and outdoor. If you need other specifications, please contact us. We can provide the LED module you need, or customize the LED display.


    1.Due to product upgrades, the batches of LED modules are different, and the module plastic casing, chip IC, PCB board, screw position, LED color, cabinet and other components may be different from the picture.

    2.LED displays of different batches or LED displays of different companies are not compatible, please do not mix them together.

    3.If you buy LED displays at different times, we will not guarantee that their appearance is the same.

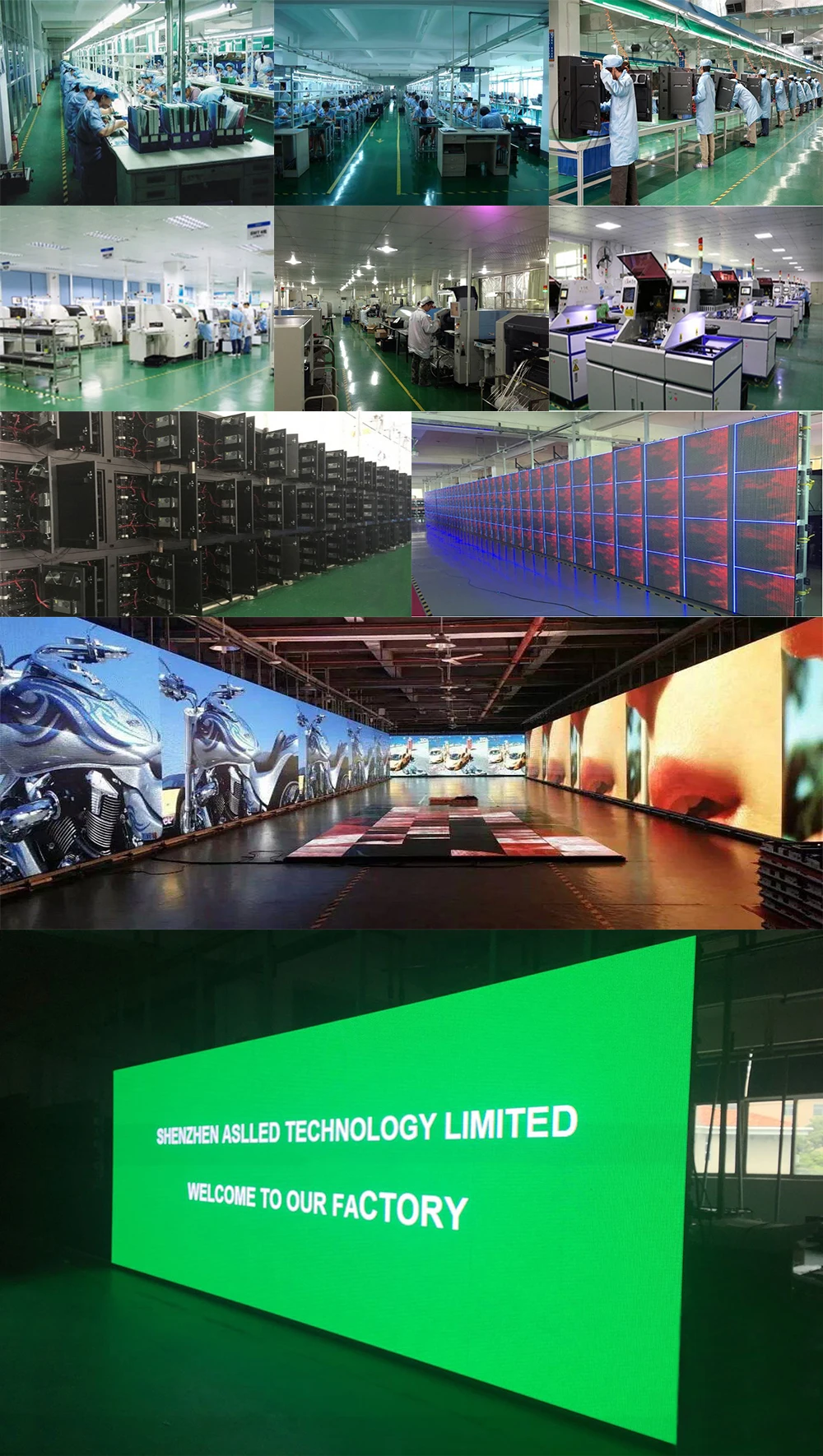

    our company:

    1.We are a LED display manufacturer integrating R&D, production, sales and after-sales service.

    2. We have rich professional knowledge and advanced production equipment, which can provide customers with low-cost and high-quality products.

    3. We provide customized LED products you need.

    4. We have an experienced professional technical team that can provide you with technical support,Help you solve the problem of LED display project.

    5. We can reissue the goods lost due to the delivery period for free.

    6. Our products are sold all over the world, and have won unanimous praise from customers all over the world with high-quality products and high-quality after-sales service.

    Our packaging and delivery:

    1.The best packaging method will be selected according to the quantity of different products.

    There are usually cartons cases, wooden cases, and flight cases to choose from.

    2. We provide air or sea freight according to the customer’s need to deliver products quickly or need a cheaper transportation method,

    Logistics company usually used for delivery (DHL / FedEx / UPS / TNT / EMS / LEDsandLighting Standard Shipping, etc.)。

    3.Delivery time depends on the courier company ,the destinations, the local customs and other factors;

    We hope it arrive on time, but this international delivery shipping time will be highly depends on the courier company and local customs,

    hope you can understand if there are any shipping delay caused by above reasons.

    If you are interested in our products, please feel free to contact us,Looking forward to a good start and a long-term partnership with you!
